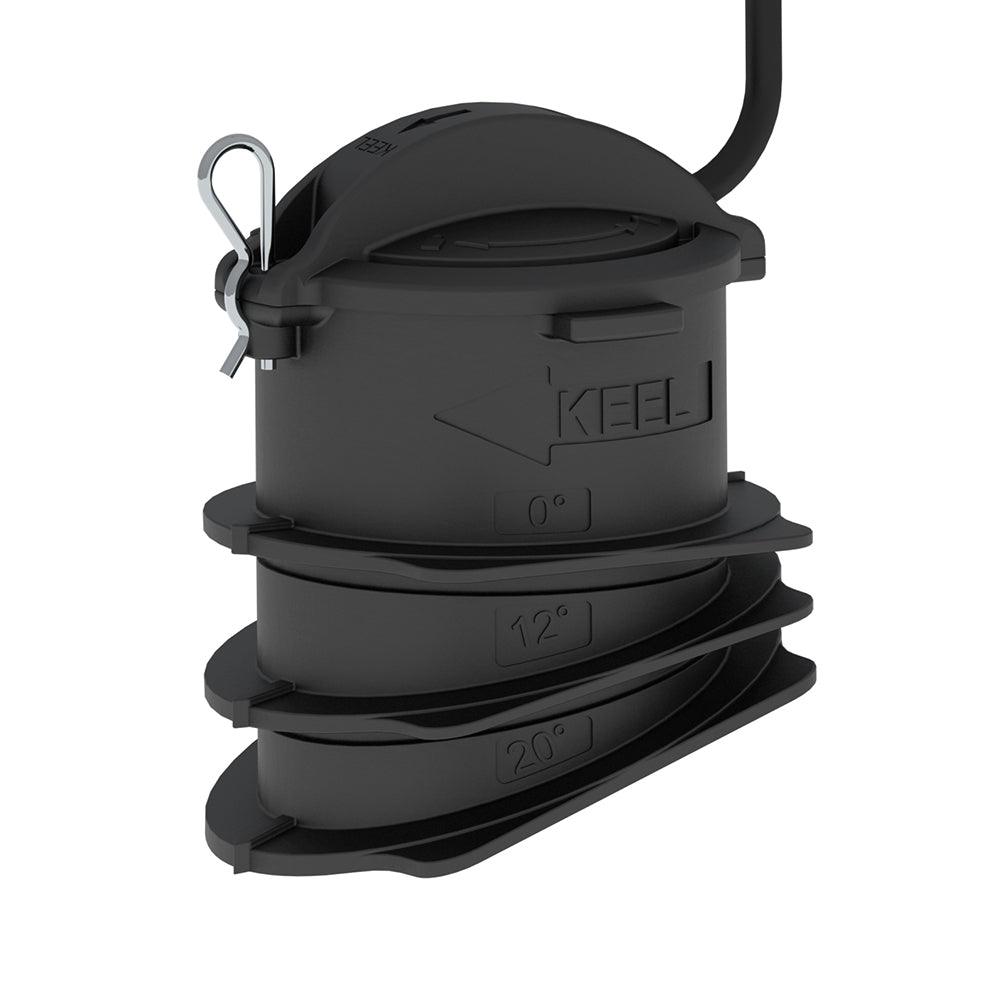

CPT-S In-Hull CHIRP Transducer

The CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz.

The CPT-S in-hull directly connects to Element S series units.

Will connect to Axiom RV/Axiom Pro RVX and Element HV using the A80490 (Axiom) or A80559 (Element HV) adapters. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.

Specifications:

• Chirp: High
• Speed Included: No
• Mounting Style: In-Hull
• Imaging: Standard
• Temperature: No
• Box Dimensions: 3"H x 7"W x 12"L WT: 1.3 lbs
• UPC: 723193840610
