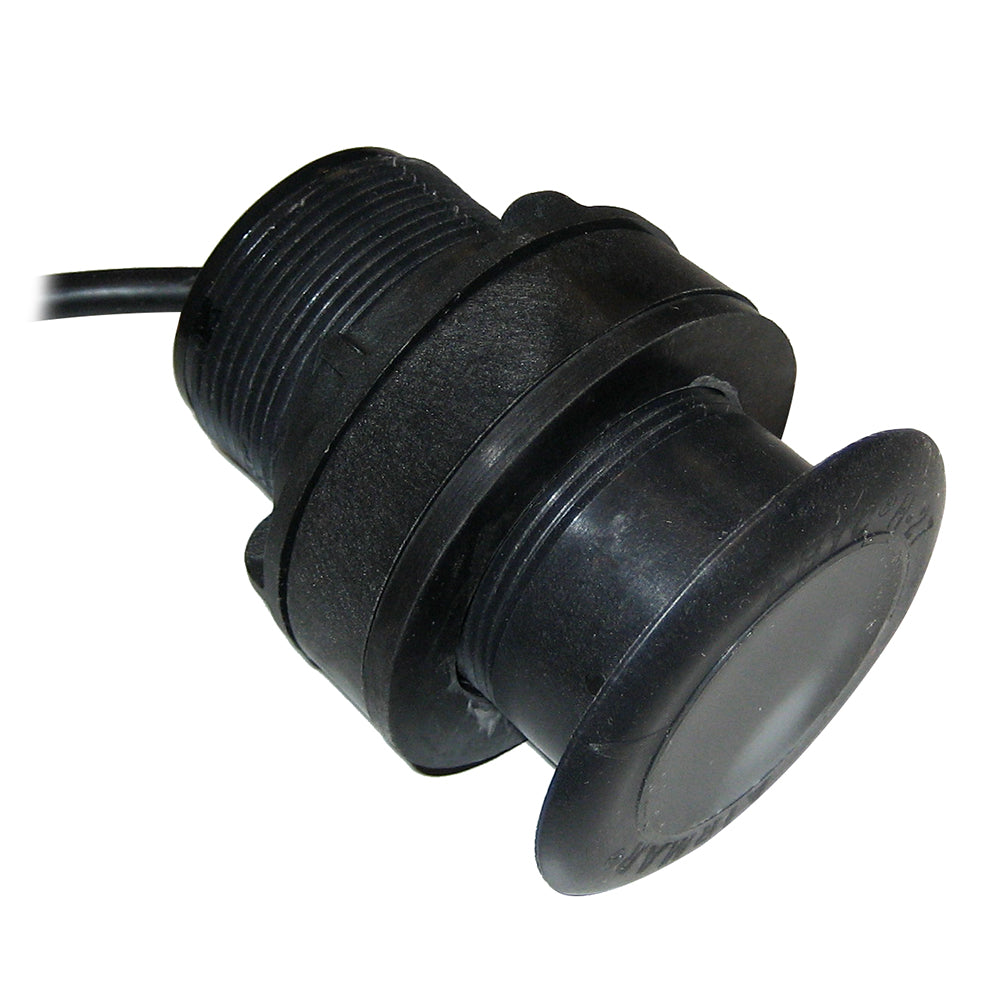

xSonic P319 Plastic Low Profile TH 50/200 9-Pin 600W Connector - 10M Cable

The P319 is a compact, plastic, thru-hull, dual-frequency (50/200 kHz) sensor that offers depth and temperature data. Ideal for planing hull powerboats and sailboats.

Depth/Temperature

• Requires just one hole in the hull to receive data for both depth and temperature

Dual Frequency

• Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water

Highly Accurate

• Provides extremely accurate data

Low Profile

• Just 5mm extends outside of the hull

Specifications:

• Frequency: 50/200 kHz
• Power Rating: 600W
• Speed Sensor: No
• Temperature Sensor: No
• Mounting Style: Plastic Thru-Hull
• Elements: 1
• Beamwidth @ -3dB: 45 (50 kHz) 12 (200 kHz)

Specifications:

• Speed Included: No
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 33'
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 10"L WT: 2.8 lbs
• UPC: 9420024162705
