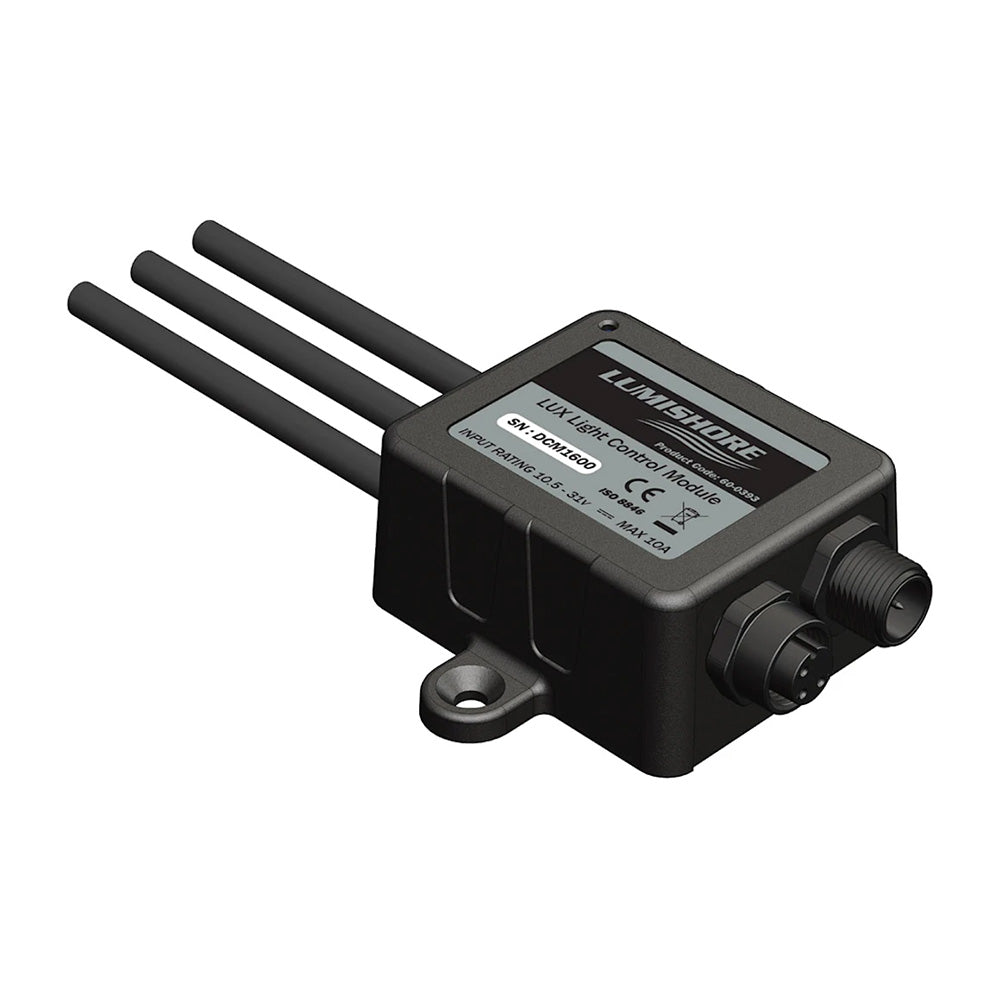

LUX Light Control Module

Features:

• Full Spectrum RGB and White Color Temperature Tunable (2700K to 6500K)
• Full Capability for LUX Smart Lighting
• Specially Designed for Ease of Installation

Specifications:

• Ingress Protection Rating: IP68
• Driver: Multi-Channel Internal Driver
• Supply Voltage Range: 10.5 - 31 V DC
• Max Current Draw: (12/24V DC) 0.2 A / 0.1 A
• Surge Protection: Yes
• ATRB (Automatic Thermal Roll Back): Yes
• Low Voltage Protection: Yes
• Auto Power Control: Yes - Intelligent Multi-Channel Power Management
• “Soft Start” Electronics Protection: Yes
• Reverse Polarity Protection: Yes
• In Rush Current Protection: Yes
• Power Line Noise Suppression: Yes
• ISO 8846 (Ignition Protection): Yes
