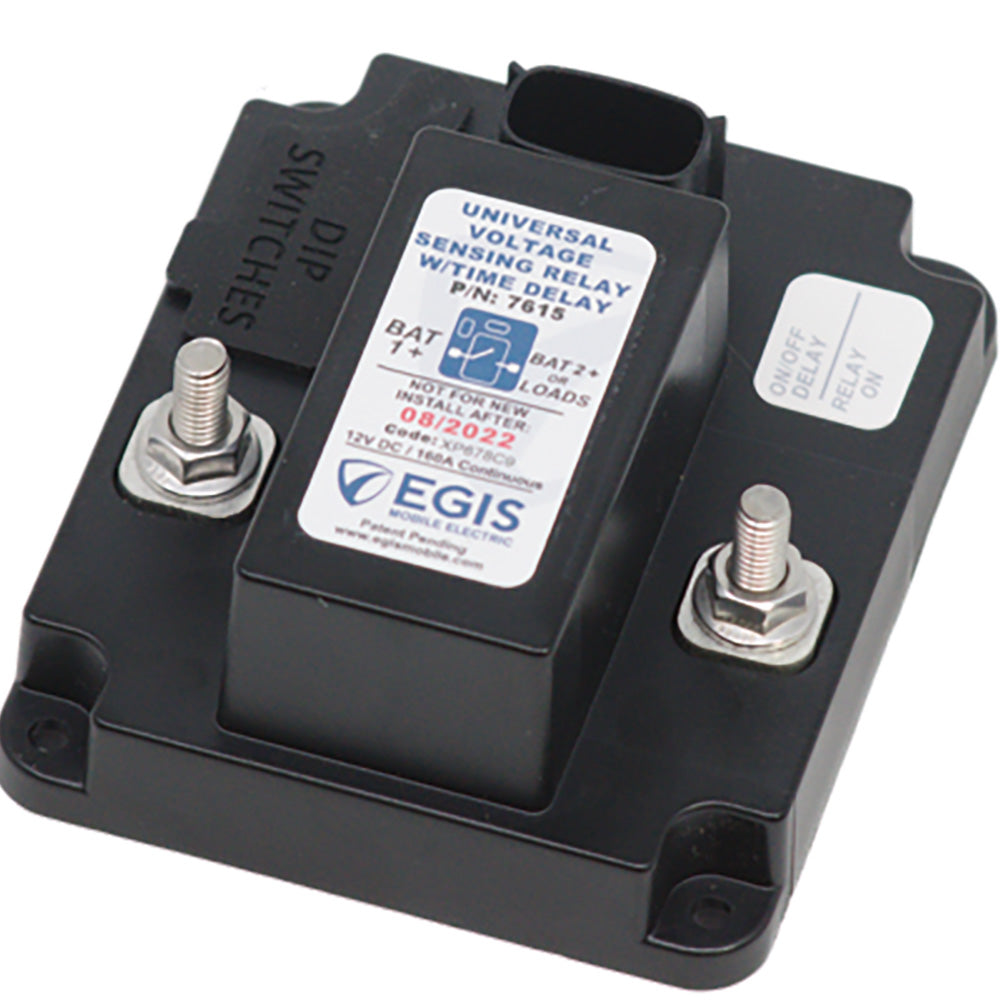

TH3 Universal Voltage Sensing Relay with OPT Time Delay 160A

Features:

• Four Functions in One Flexible Device: Time Delay Relay, Low Voltage Disconnect, Automatic Charging Relay/Battery Isolator, or a Simple Relay/Solenoid Switch.
• Prevent auxiliary loads from draining batteries, maximize electrical system readiness by eliminating dead batteries, and reduce long-term electrical system maintenance costs.
• Ensure dual battery systems function safely and effectively by sharing charging power when available and isolating batteries when desired to ensure starting or communications ability.
• Reduce voltage drop from battery to loads by eliminating the need for long power cable runs to human access areas, also reducing costs.

Specifications:

• Adjustable Time Delay: 0 sec - 15 hr
• Adjustable On/Off Voltage Trigger
• Adjustable Low Voltage Protection
• Priority Override: Key Signal or UV/OV

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 7"L WT: 0.78 lbs
• UPC: 850035199763
