Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]

Regular price ~~$146.55~~ $105.99

Series 7 Flat Base/Aluminum Cheek/Delrin SheaveDelrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Dia. 2-3/8" (60 mm) Max. Line 1/2" (13 mm) Length 4-3/8" (111 mm) Width...

Product Details

Product Details

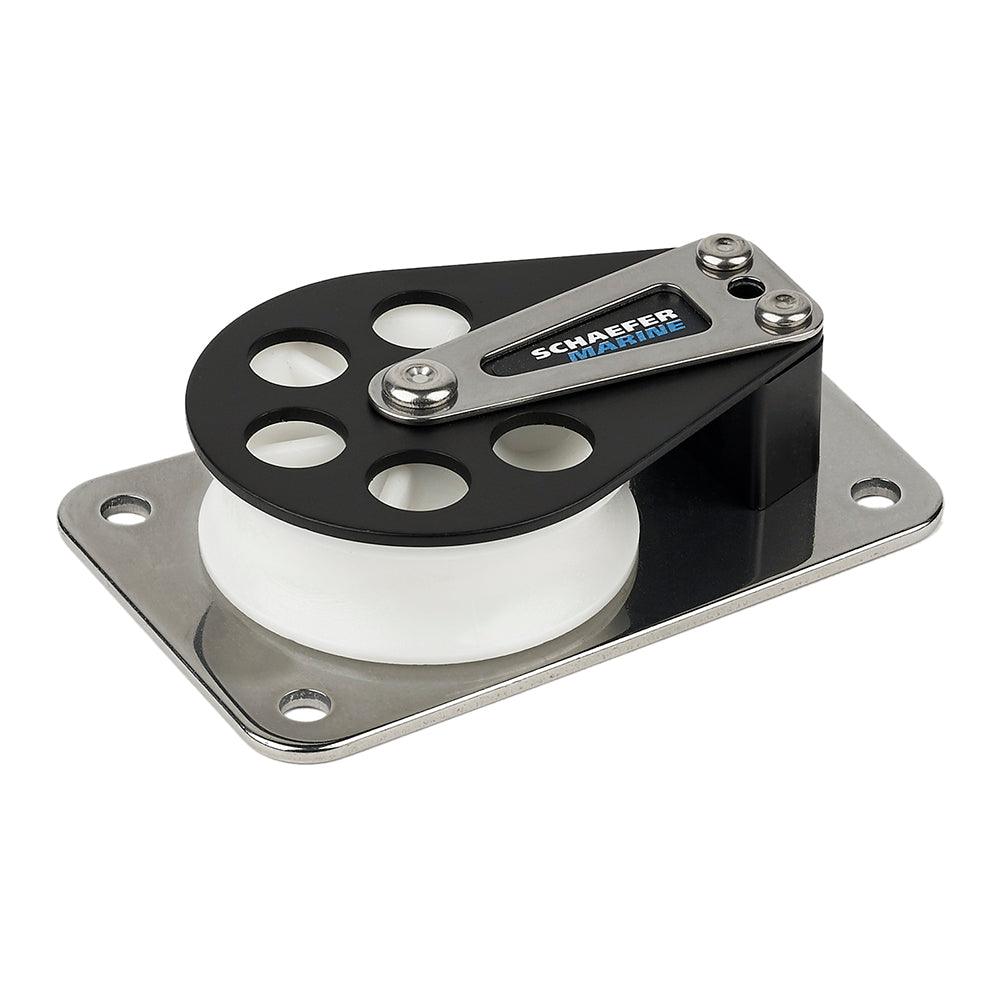

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

Sheave Dia. 2-3/8" (60 mm)
Max. Line 1/2" (13 mm)
Length 4-3/8" (111 mm)
Width 2-3/4" (70 mm)
Height 1" (25 mm)
Fasteners (4) 1/4" RH (6 mm)
C/C 3-5/8" (92 mm)
C/C (wide end) 2" (51mm)
C/C (narrow end) 1-9/16"
SWL 2250 lbs. (1020 kg)
Weight Alum. 9.6 oz. (272 g)
