Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave [303-09]

Regular price ~~$82.75~~ $59.99

Series 3 Flat Base/Alum Cheek/Delrin SheaveDelrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.Specifications: Sheave Dia. 1-7/16" (37 mm) Max Line 7/16" (11 m) Length 2-7/8" (73...

Product Details

Product Details

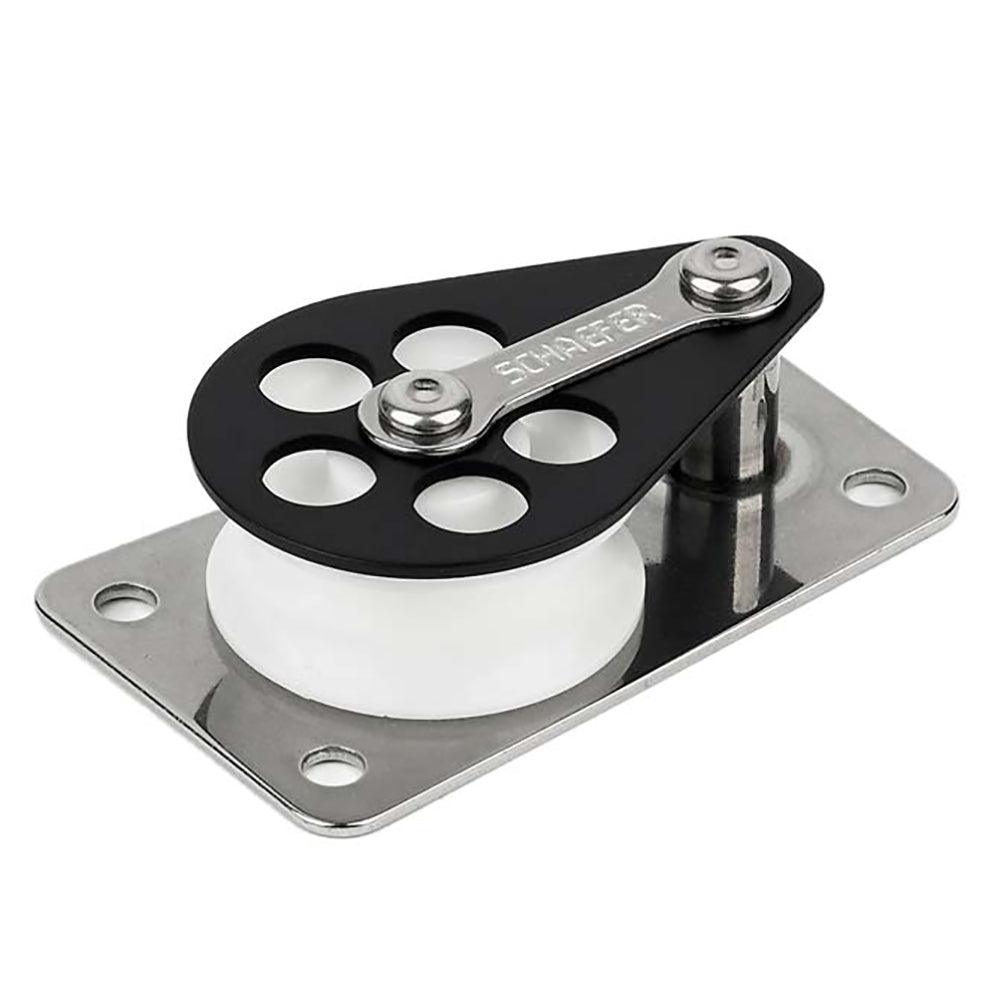

Series 3 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.

Specifications:

Sheave Dia. 1-7/16" (37 mm)
Max Line 7/16" (11 m)
Length 2-7/8" (73 mm)
Width 1-3/4" (44 mm)
Height 3/4" (19 mm)
Fasteners (4) #10- RH (5 mm)
C/C 2-3/8" (60 mm)
SWL 1000 lbs. (450 kg)
Weight Alum. 2.5 oz. (71 g)
