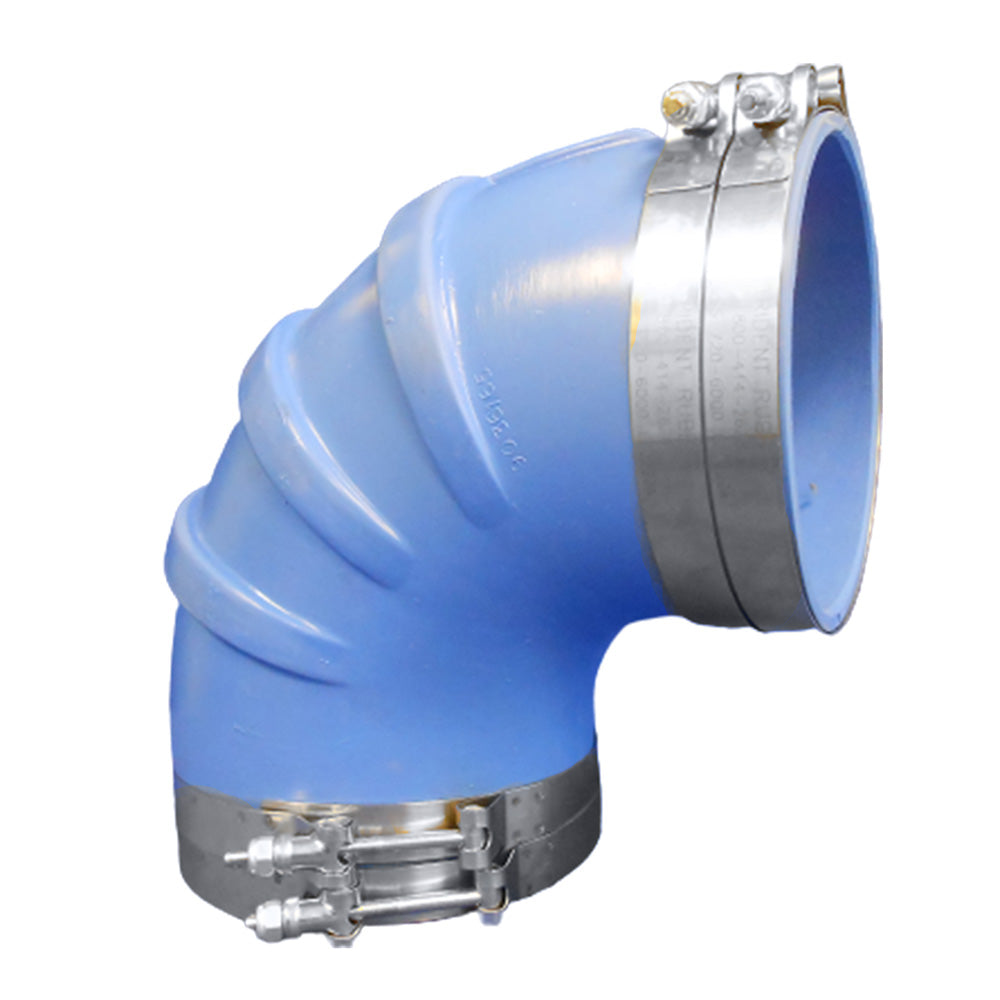

6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 350°F (177°C)

Specifications:

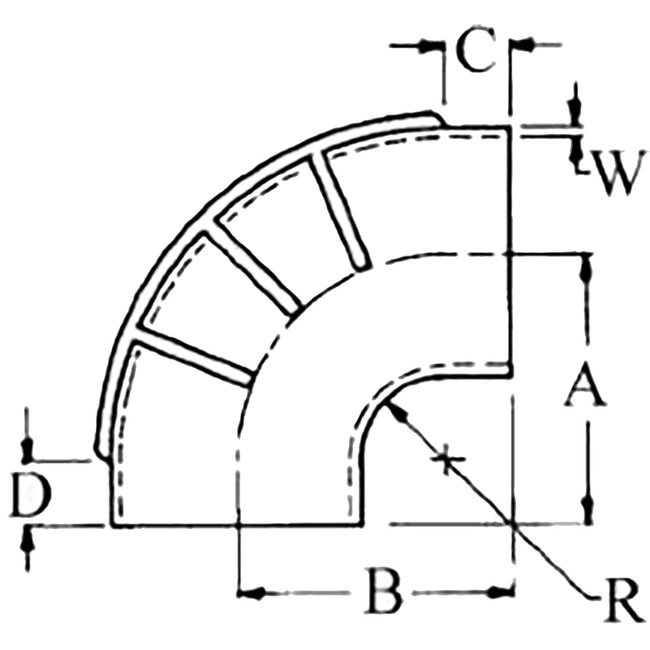

• Inner Diameter: (inch) 6” / 152.4 mm
• A: (inch) 7” / (mm) 178
• B: (inch) 7” / (mm) 178
• C: (inch) 2.25” / (mm) 57.2
• D: (inch) 2" / (mm) 57.2
• R: (inch) 1.75” / (mm) 44.5
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 90 degrees

Specifications:

• ID Diameter (inches): 6"
• Box Dimensions: 8"H x 10"W x 15"L WT: 5 lbs
• UPC: 704917002125
