Product Details

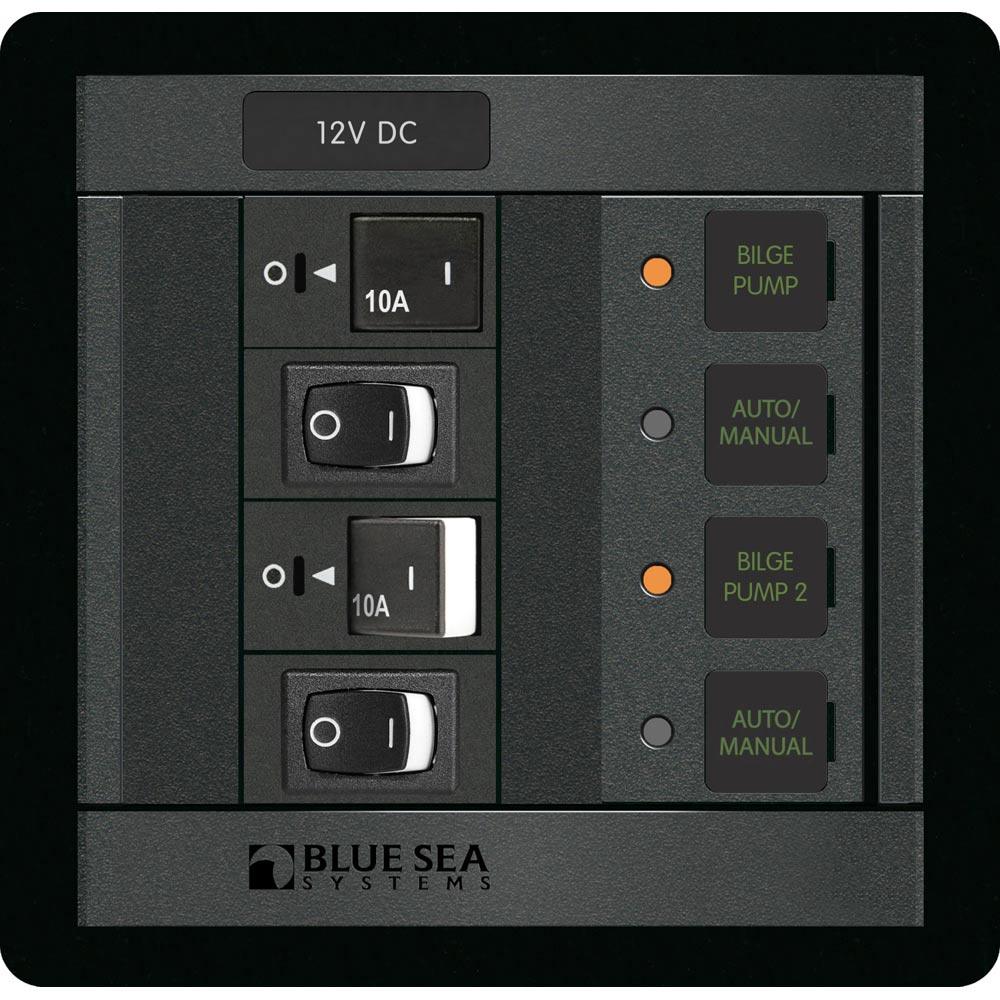

360 Panel Dual Bilge Pump Control
Controls two bilge pumps
Restricted-off circuit breakers and manual override switches
- On-indicating LED indicates power is available at the bilge pump float switch
- Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation
Specifications:
-
Nominal Voltage: 12V DC
-
Height: 4.75" (120.65mm)
- Width: 4.88" (123.95mm)
Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Box Dimensions: 5"H x 7"W x 9"L WT: 1.3 lbs
- UPC: 632085015220
Quick Guide (pdf)
