6007

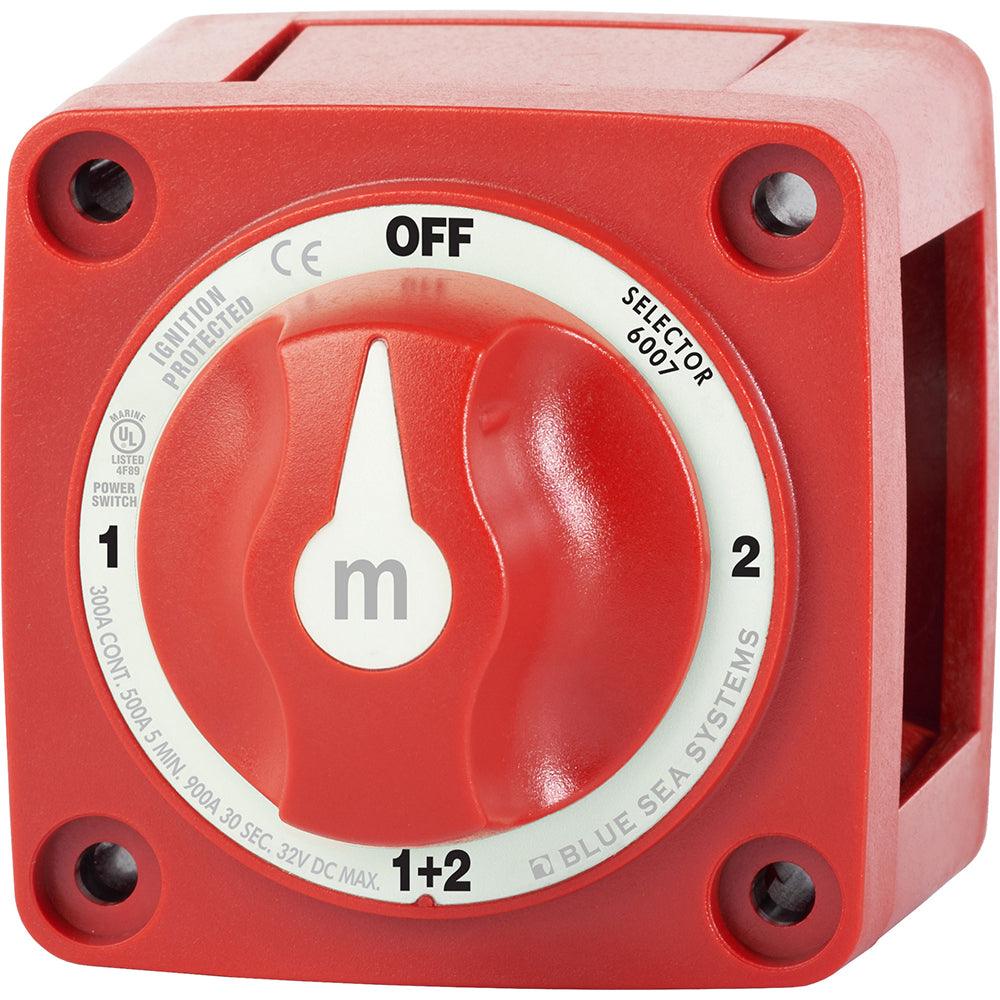

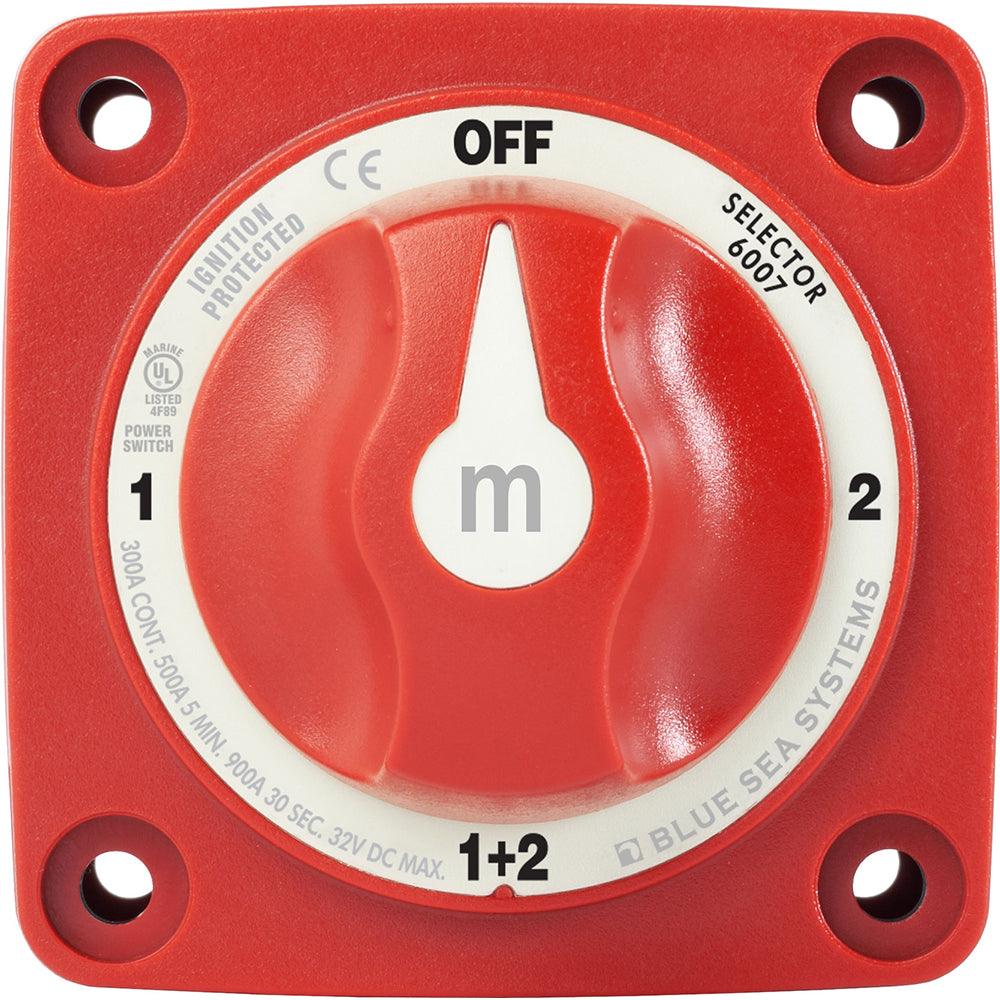

m-Series (Mini) Battery Switch Selector

Make before break contact design allows switching between battery banks without power interruption

Selector

• Switches battery bank 1 or battery bank 2 or both to a single load using one switch

• Ignition protected - Safe for installation aboard gasoline powered boats

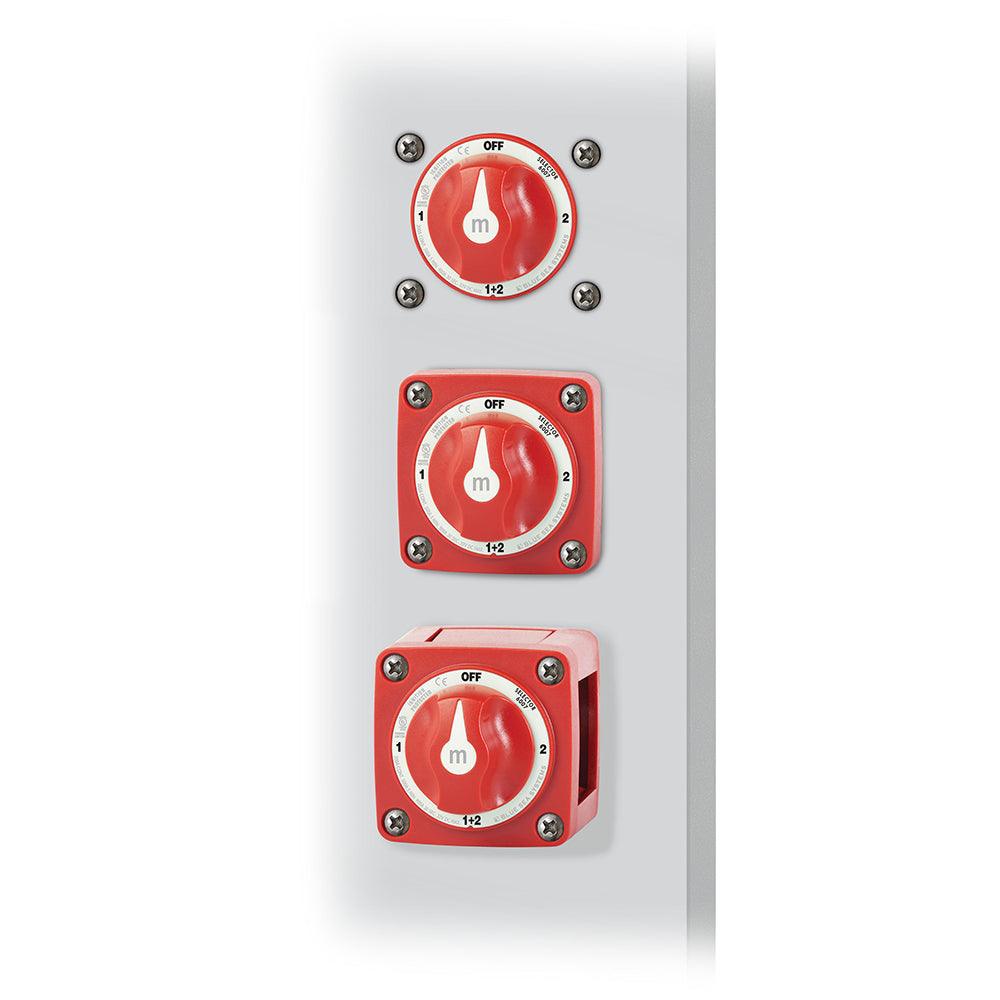

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

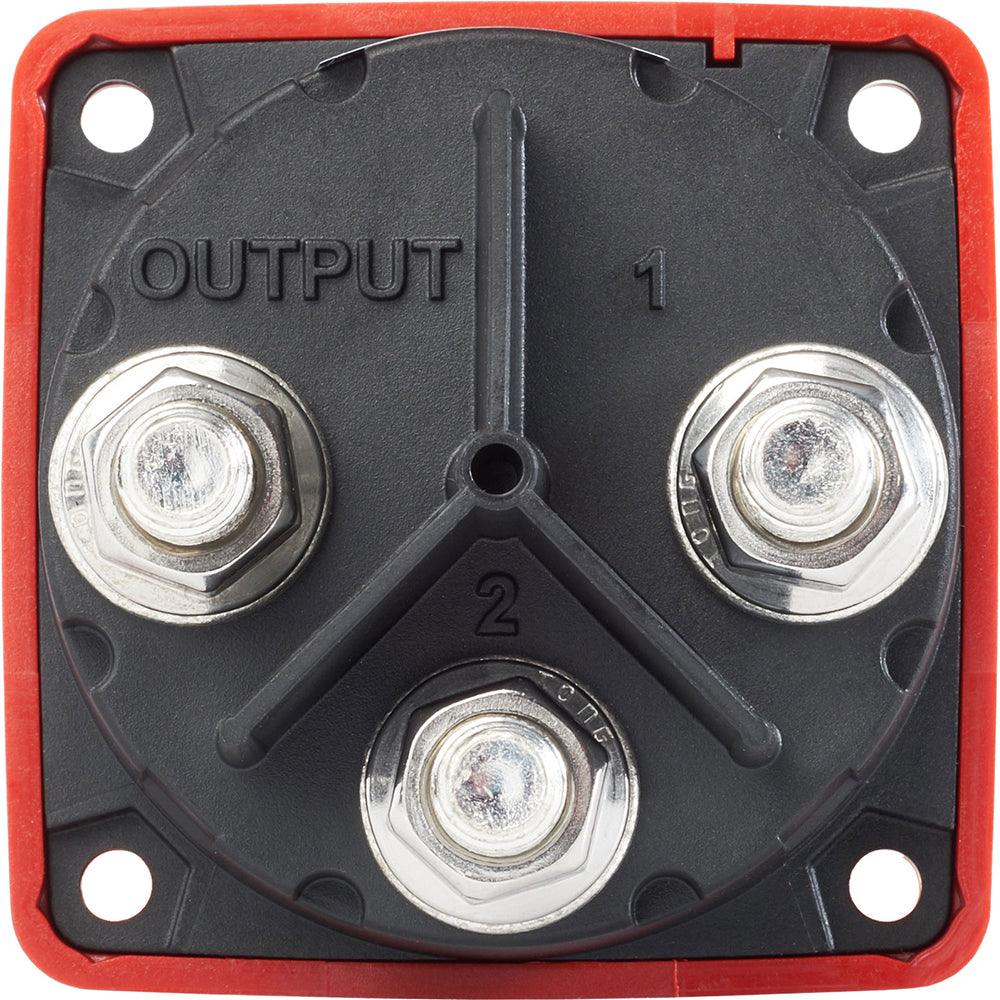

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 2
• Lockable: Yes
• Continuous Amperage: 700a
• Box Dimensions: 3"H x 4"W x 7"L WT: 0.78 lbs
• UPC: 632085060077
