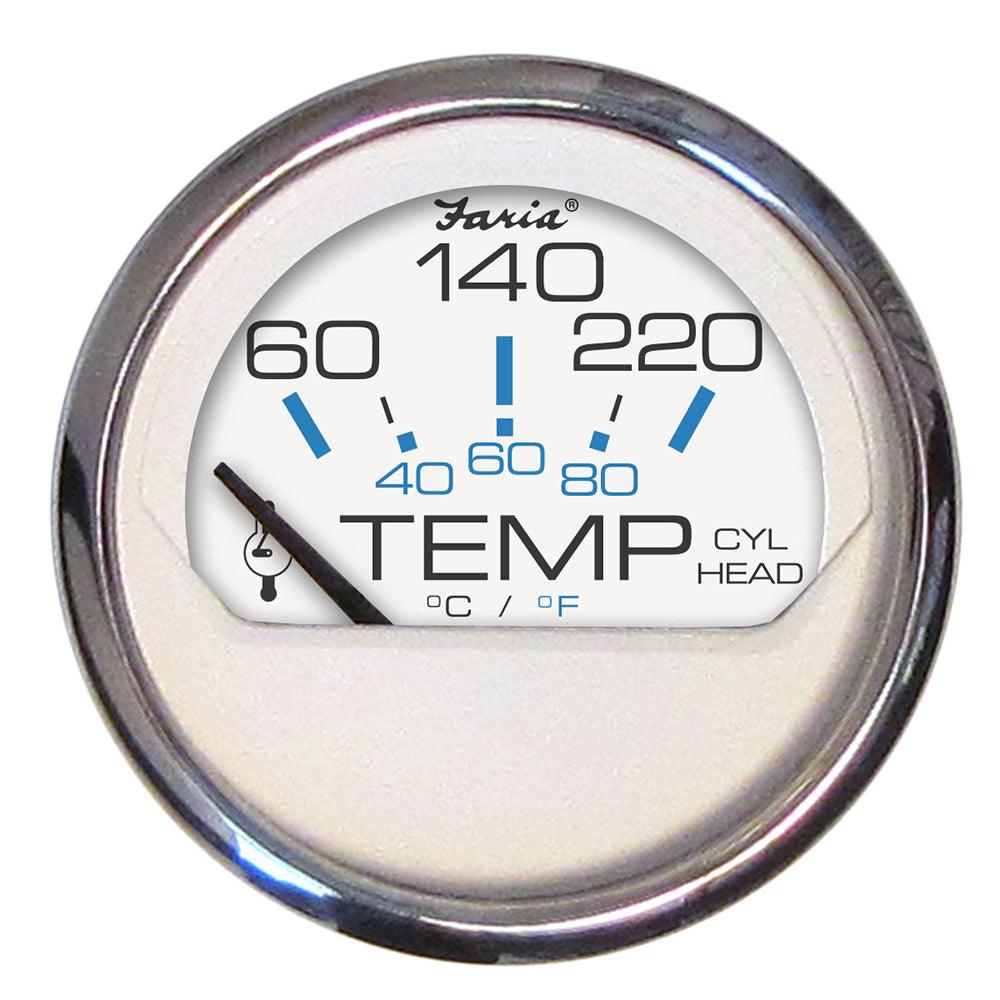

Chesapeake White SS 2" Cylinder Head Temperature Gauge (60-220°F)

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

A temperature gauge operates by sending a low amperage current through the gauge's meter to the ground via a sending unit with variable resistance. The resistance of the sending units increases or decreases with the changes in pressure, temperature, etc.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• Perimeter lighted back light
• 12 VDC negative ground
• Can be adapted for 24 VDC systems
• Dual Scale - Imperial or Metric

Factory P/N GP9454

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Gauge Type: Cylinder Head Temperature
• Gauge Size: 2"
• Series: Chesapeake White
• Box Set: No
• Voltage - Input Range (Volts): 12/24 V
• Box Dimensions: 3"H x 3"W x 4"L WT: 0.4 lbs
• UPC: 759266138063
